Structured panels from the experts in OchtrupYou can rely on us! We are your specialist for all types of system panels!

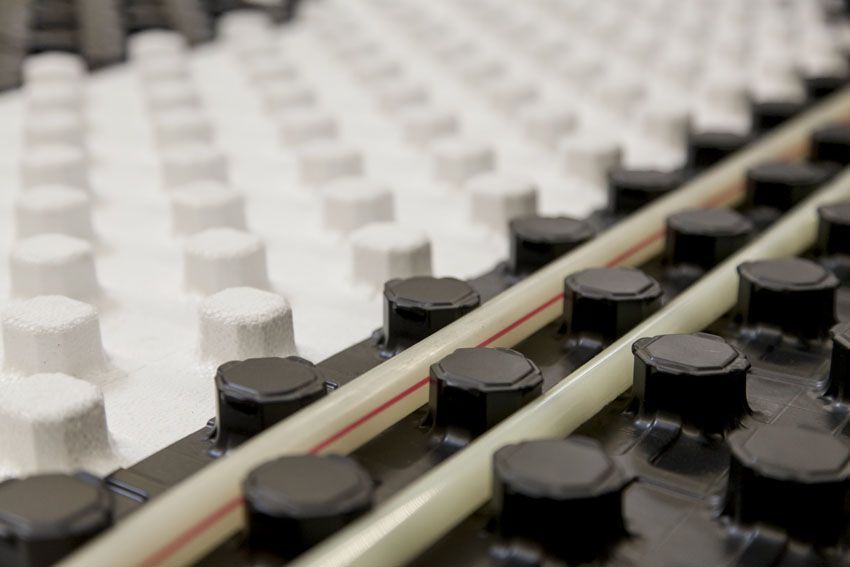

You are at home in the heating and sanitary branch? Then you know that the basis for the laying of pipelines for underfloor heating for example is the use of high quality structured panels.
We produce structured and system panels for surface regulation systems that are popular both as multifunctional system panels and as customised floor panels.
Our numerous models are:
- fitted with secure pipe holds
- 100% recyclable
- suitable for different pipe dimensions and clearances

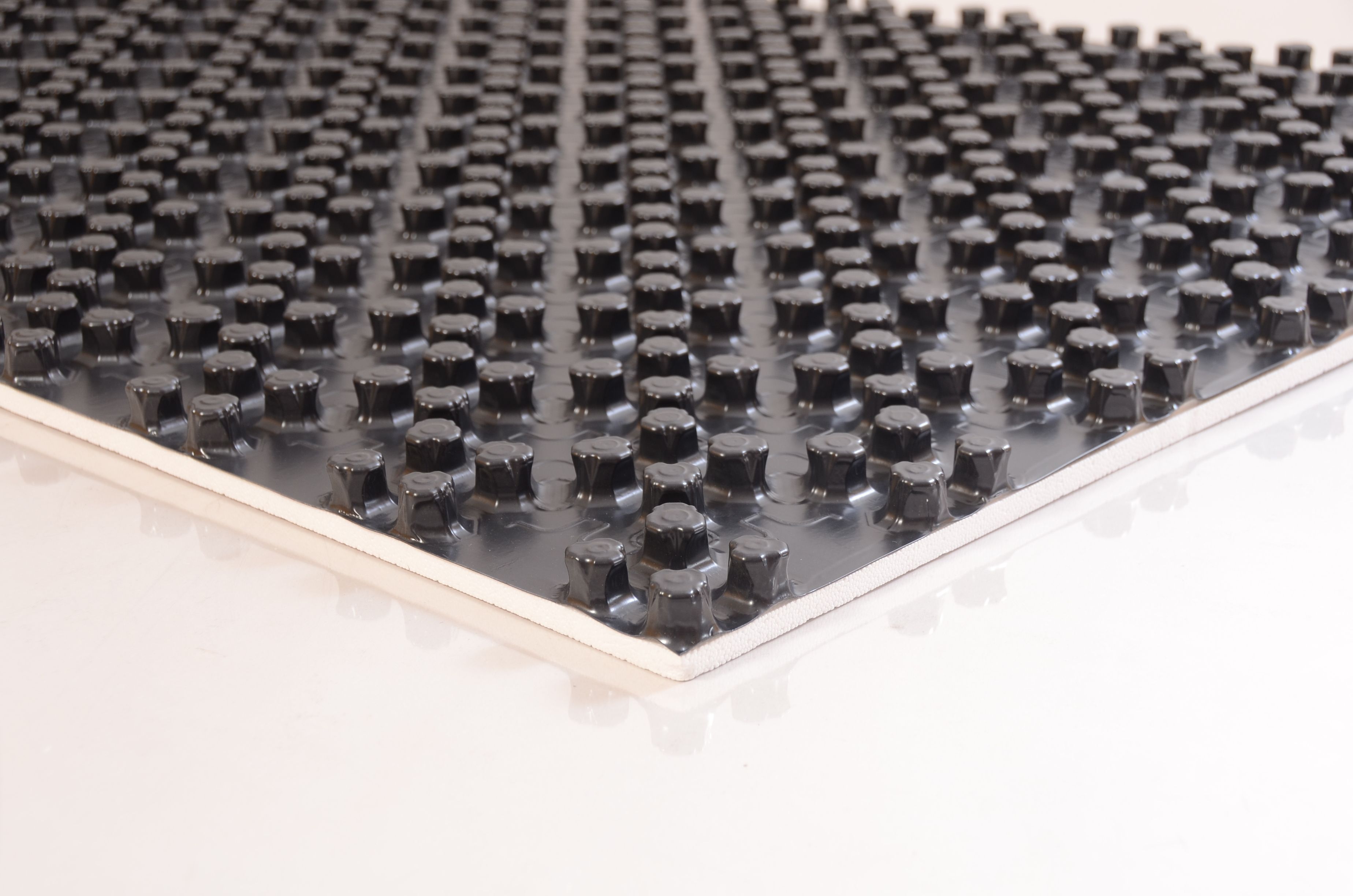

- can be provided with integrated footfall insulation and thermal insulation on request
Heating - cooling - air conditioningstructured panels for all requirements
Whether the standard model or system panels for special requirements - WISCHEMANN Kunststoff GmbH produces and markets various structured and system panels for individual needs.
Downloads
Dieses Modell wurde für größere Rohrdimensionen (14 - 20 mm) entwickelt. Die patentierte Struktur (Zwischennoppen) ermöglicht auch eine problemlose Diagonalverlegung. Zudem überzeugt Witech 16+ mit einer guten Mono-Stabilität (ohne Isolierung). Die Lieferung in alternativen Dämmungen ist ebenfalls möglich.
Diese universelle Systemplatte ist in der Größe 1 m x 1 m erhältlich und überzeugt als Allrounder. Diese Noppenplatten sind vor allem für die Montage in kleineren Räumen ohne große Schneideverluste geeignet. Die diagonale Verlegungsmöglichkeit dieser Palette ist ein weiterer Vorteil. Die Platten können auch in alternativen Dämmungen geliefert werden.
14 mm - 17 mm pipes can be laid without difficulty using this structured panel. The panel dimensions (1400 mm x 800 mm) ensure an optimal loading of pallets and trucks. A diagonal laying is also no problem when using our diagonal holder.
We have developed these system panels for larger pipe dimensions (10-12 mm). With the Witech 10+, we are relying on our patented structure (intermediate structures) that enable a diagonal laying to be carried out without difficulty. The properties of this model are rounded off by a good monostability (without insulation) and various insulation variants.
This system structured panel has been developed for pipe dimensions of 14-17 mm. The press stud principle enables it to be laid especially fast (1.2 sq. m floor space). A diagonal laying without additional elements is also possible, and the foamed structure enables the panels to be walked on without difficulty.
We can supply you with panels that are suitable for the laying of underfloor heating pipes (pipe diameter: 14 mm) under dry screed panels or wet screed together with heat conducting lamellae and moisture barrier foil in a snail or meandering form.
